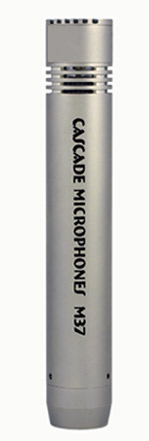

The Cascade M37 is a cardioid
condenser that has a 20 mm diameter diaphragm. It is ideal for use
as drum over heads, hi-hat, snare, or acoustic instruments such as
guitar and piano. The M37 features a high SPL rating of 137 dB and
is capable of capturing even the loudest of audio sources. The M37
is a compact microphone that is great for recording a wide range of
instruments and is in use in professional and project studios around
the world.
Specifications:
-
20 mm diameter diaphragm
-
Power: P24V or P48V Phantom Power
-
Phasing: Positive pressure on
diaphragm generates a positive voltage on pin #2 relative to pin
#3
-
Generating Element: Externally
Biased Condenser
-
Polar Pattern: Unidirectional (Cardioid)
-
Frequency Response: 30 Hz - 20 kHz
-
Sensitivity: -56 dB 0dB=1V/uBar @
1 kHz
-
Impedance: Low (Less than 200
Ohms)
-
Equivalent Noise Level: +14 dB
(A-weighted)
-
Connector: 3-Pin male XLR
-
Weight: 126 Grams
Includes:
-
Cascade M37 small cardioid
condenser microphone
-
Standard style microphone mounting
clip
-
Vinyl zipper pouch
-
Foam Windscreen
-
Micro-fiber cleaning cloth
Options:
-
Omni capsule
-

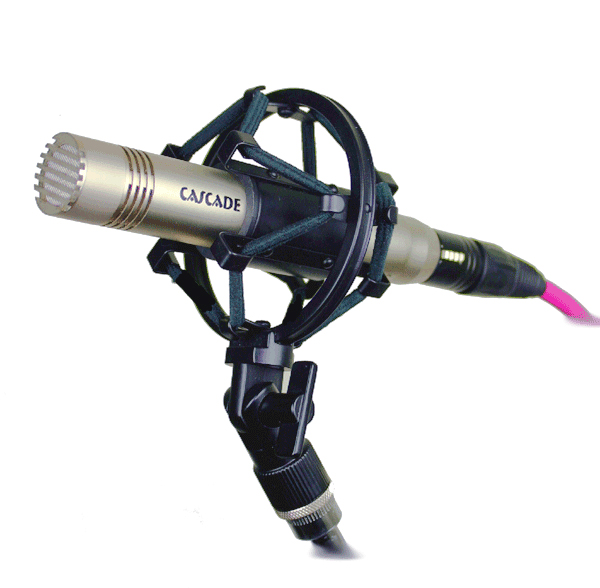

Suspension shockmount
