Deco Vibe

          Dual Element Ribbon

Model: 731R--------Fitted with Stock Transformer

Model: 731RL -------Fitted with Swedish Made  Lundahl LL2913 Transformer


CASCADE PF-1 Pop-filter $25.95 ORDER


New Swithcraft Rt. angle w/Gotham Star-Quad XLR XLR microphone cable

Click image to order


Mogami NEGLEX 2534 w/ Neutrik Gold Connectors

Click image to order


Universal Audio Solo 110 & 610 Preamps

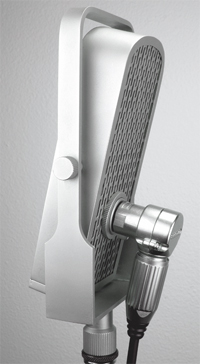

Ribbon Microphone - Cascade 731R Vintage Style





CASCADE 731R Retro - Old School Style Ribbon Microphone

Electronic Musician eDeals customer special

Includes Cascade 731R Special Price $299.00 (reg. $399.00)

 Plus Sennheiser HD280 Pro Headphones (retail value $199.95)


Cascade Ribbon Microphones Feature Center-Field Technology
"Balanced Audio Input"

Similar to the ribbon design that was used in the legendary RCA Type 44-BX

Dual-element Ribbon Microphone

Unlike most ribbon motors designed today with an offset ribbon element the new Cascade 731R houses a hand-tuned dual ribbon element motor that incorporates the legendary symmetrical ribbon design. This design offers a true figure 8 pattern. The corrugated aluminum membrane itself is positioned in the center from front to back, thus producing a balanced audio input signal to both sides of the ribbon assembly. This design is very useful when executing a mid-side or Blumlein recording set-up and also great for live stage use.

The 731R utilizes the same ribbon motor and transformer as the DR-2. The difference is in the radical Deco style frame and body.

Note:

  • As with all ribbon type microphones, the 731R is not suitable for instruments that produce air-pressure, i.e. kick drum or blowing directly into the grill.

  • The 731R Does Not require or need Phantom power (Phantom power can damage the ribbon under certain conditions).

  • A pop-filter is recommended for vocals or any instrument that produces air-pressure.


CASCADE 731R Dual Ribbon

Features:

  • Velocity ribbon element featuring Center Field Technology
  • High quality 30ft. right angle 3-pin XLR (F) to straight XLR  (M) microphone cable
  • Jewelers quality wood box with two heavy-duty polished nickel latches and hinges

  • Upgrade aluminum case

  • Micro-fiber cleaning cloth



Specifications:
  • Ribbon type: Dual 2.5 micron, 99% Pure aluminum element
  • Polar pattern: Symmetrical figure 8
  • Sensitivity: -57.1 dB (1.4 mV/Pa
  • Frequency response: 30 - 15kHz (±3dB)
  • Max. SPL (1% THD@1,000Hz): 165dB
  • Equivalent noise level to IEC 651 (a weighted): 17dB
  • S/N ratio re 1Pa: 70dB
  • MIC Connector: Removable right angle 3-pin XLR

Warranty:  Full coverage for one year from date of purchase.






Electronic Musician eDeals customer special

$299.00 - 731 R  Includes Sennheiser HD280 Pro Headphones






Specifications and Polar Pattern

Cross Spectrum Labs

Frequency Response and Polar Pattern
