Cascade M-55 1 Inch Diaphragm Vacuum Tube Condenser

The Cascade M-55’s classic tube design performs superior on lead or background vocals, as well as acoustic guitar and drums. The circuit design of the Cascade M-55 uses a specially selected super-low noise 12AX7 tube, mounted to a ceramic tube socket for ease of access & replacement. The Cascade M-55 has a 1" gold-sputtered diaphragm & offers transformer balanced output. The transformer design ensures higher immunity to noise and longer cable drive capability. The Cascade M-55 delivers a smooth, fast transient response with extremely low noise and low distortion. A high quality shockmount and aluminum flight case is standard equipment.

Specifications:
Type: Vacuum tube condenser
Capsule: 1" diameter, gold sputtered gradient design
Frequency Response: 20Hz to 20 kHz
Polar Pattern: Cardioid
Diaphragm: 1" 24k gold-sputtered
Sensitivity: 14m V/Pa
Tube Type: 12AX7
Output impedance: < 200 ohms
Output Noise: < 17dB typical, (A weighted)
THD: < 0.5% at 125 dB SPL
Power Requirement: Dedicated Power Supply, switchable 115v to 220v.

Frequency Response / Polar Pattern:
cardioid

Retail price:         $499.00                    CLOSE-OUT SALE!   Free ground shipping!
Bayview price:    $349.00                    Click here to order at Bayview Pro Audio.

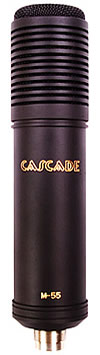

Cascade M-55 click to enlarge
