CASCADE MICROPHONES

SPECIAL OFFER for Cascade Microphones Customers

International customers please email us for this special offer

360.867.1799

Stereo pair M39 small condensers (Two color options)

Shown with optional Shockmount











Specifications:

  • 22mm diameter diaphragm
  • Power: P24V or P48V Phantom Power
  • 10dB switchable attenuation, selectable
  • -10dB low-frequency roll-off
  • Phasing: Positive pressure on diaphragm generates a positive voltage on pin #2 relative to pin #3
  • Generating Element: Externally Biased Condenser
  • Polar Pattern: Unidirectional (Cardioid)
  • Frequency Response: 30 Hz - 20 kHz
  • Sensitivity: -56 dB 0dB=1V/uBar @ 1 kHz
  • Impedance: Low (Less than 200 Ohms)
  • Equivalent Noise Level: +14 dB (A-weighted)
  • Connector: 3-Pin male XLR
  • Weight: 135 Grams

Includes:

  • M39 Stereo Pair Microphones
  • Molded plastic case with EVA foam
  • 2 Standard style microphone mounting clips
  • Micro-fiber cleaning cloth

SPECIAL SALE PRICE: $129.00

Choose Color

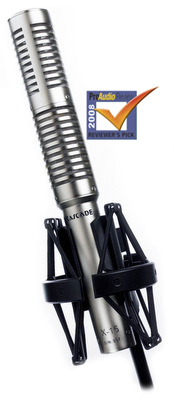

X-15 Stereo Short Ribbon Microphone

Two hand-tuned ribbon elements with legendary symmetrical design

Specifications:

  • Type: Ribbon (velocity) Microphone
  • Ribbon type & Dimensions: 99% Pure aluminum, 2.5 micron, 1 3/4" (L) X 3/16" (W)
  • Polar pattern: Figure 8 Symmetrical design
  • Sensitivity: -51.7 dB +/- 2 dB (2.6 mV/Pa)
  • Frequency response: 30 - 18,000 Hz (+/- 3dB)
  • Output Impedance: <=200 Ohms
  • Recommended load impedance: >1000 Ohms
  • Max.SPL (1% THD @1000 Hz): 145 dB
  • Connector: Heavy gauge 5-Pin male XLR
  • Size: Diameter: 1 1/4" (O.D. grill), overall length 9 1/2", 1" (O.D. body

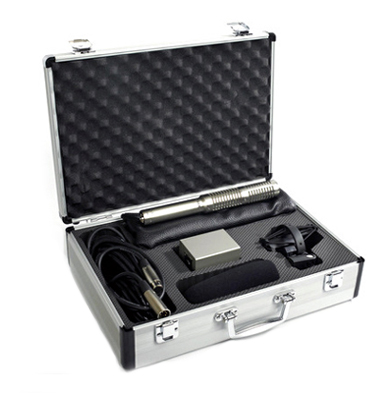

Includes:

  • X-15 Stereo Ribbon Microphone
  • Aluminum case
  • Premium suspension shockmount
  • Thick padded vinyl pouch
  • Wind filter
  • 20ft. 5-Pin XLR cable
  • Splitter cable for left right channels
  • Micro-fiber cleaning cloth
  • Specifications and typical measurement report

SALE PRICE: $349.00

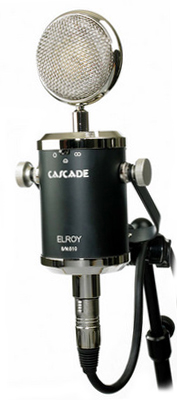

Elroy Tube Condenser Microphone

Unique multi-pattern microphone with shock-absorbing capsule design



Specifications:

  • 1.25 inch gold sputtered multi-pattern hand dampened dual diaphragm capsule
  • Unique Shock-absorbing Capsule design
  • -10 db pad & lo-cut filter
  • 6J1 tube
  • Polar Pattern: Three position switchable
  • Omnidirectional, Figure 8, and Cardioid patterns
  • Frequency Response: 20Hz - 20kHz
  • Sensitivity: -37dBV (14.1mV) @ 1Pa
  • Impedance: 250 Ohms
  • Max SPL: 133dB, 1% THD, 1KHz
  • Self Noise: 18dBA
  • Power Requirements: 115VAC or 230VAC, switchable

Includes:

  • Elroy Tube Microphone
  • Aluminum case
  • Padded storage pouch
  • 7-Pin 20ft. XLR cable
  • Heavy duty power supply
  • Micro-fiber cleaning cloth

SALE PRICE: $249.00

FAT HEAD II Stereo Pair Microphone Blumlein Package Black body/Silver grill

Upgrade to the FAT HEAD II now in a stereo package including the Blumlein Bar

Specifications:
  • Type: Ribbon (velocity) Microphone
  • Ribbon type & Dimensions: 99% Pure aluminum, 2.5 micron, 1 3/4" (L) X 3/16" (W)
  • Polar pattern: Figure 8 Symmetrical design
  • Sensitivity: -56 db +/- 2 dB (0 dB=1V/Pa)
  • Frequency response: 30 - 18,000 Hz (+/- 3dB)
  • Output Impedance: <=200 Ohms
  • Recommended load impedance: >1000 Ohms
  • Max.SPL (1% THD @1000 Hz): 165 dB
  • Connector: 3-Pin male XLR
  • Size: Diameter: 3" (O.D. grill), overall length 7 3/4", 1 3/4" (O.D. body)

Includes:
  • FAT HEAD II Stereo Pair Microphones
  • Aluminum case
  • Blumlein Stereo Adaptor Bar
  • 2 Premium suspension shockmounts
  • 2 Drawcord cloth storage pouches
  • 2 Micro-fiber cleaning cloths
  • Specifications and typical measurement report

    SPECIAL SALE PRICE: $349.00

FAT HEAD II Short Ribbon Microphone

The FAT HEAD II offers a unique radian grill design

Specifications:

  • Type: Ribbon (velocity) Microphone
  • Ribbon type & Dimensions: 99% Pure aluminum, 2.5 micron, 1 3/4" (L) X 3/16" (W)
  • Polar pattern: Figure 8 Symmetrical design
  • Sensitivity: -56 db +/- 2 dB (0 dB=1V/Pa)
  • Frequency response: 30 - 18,000 Hz (+/- 3dB)
  • Output Impedance: <=200 Ohms
  • Recommended load impedance: >1000 Ohms
  • Max.SPL (1% THD @1000 Hz): 165 dB
  • Connector: 3-Pin male XLR
  • Size: Diameter: 3" (O.D. grill), overall length 7 3/4", 1 3/4" (O.D. body)

Includes:

  • FAT HEAD II Ribbon Microphone
  • Aluminum case
  • Deluxe oil stained wood box
  • Premium suspension shockmount
  • Drawcord cloth storage pouch
  • Micro-fiber cleaning cloth
  • Specifications and typical measurement report

    SPECIAL SALE PRICE: $199.00

    CHOOSE COLOR

    VIN-JET Long Ribbon Microphone

    Most intimate, warm, and articulate sound produced by any type of microphone



Specifications:

  • Type: Ribbon (velocity) Microphone
  • Ribbon type & Dimensions: 99% Pure aluminum, 2.5 micron, 2 7/16" (L) X 3/16" (W)
  • Polar pattern: Figure 8 Symmetrical design
  • Sensitivity: -54.8 dB (1.8 mV/Pa)
  • Smooth, natural extended low and high ends
  • Fast, accurate transient response
  • Wide, extended sweet spots
  • 165dB SPL capability
  • Connector: 3-Pin male XLR
  • Ideal for stereo microphone setups
  • Size: 2 1/8" (O.D. grill),  2" (O.D. body); Overall length 8 3/8"

Includes:

  • VIN-JET Long Ribbon Microphone
  • Aluminum case
  • Premium suspension shockmount
  • Thick vinyl storage pouch
  • Micro-fiber cleaning cloth
  • Specifications and typical measurement report

SPECIAL SALE PRICE: $169.00

Gomez Short Ribbon Microphone

Michael Joly edition



Specifications:

  • Type: Ribbon (velocity) Microphone
  • Ribbon type & Dimensions: 99% Pure aluminum, 2.5 micron, 1 3/4" (L) X 3/16" (W)
  • Polar pattern: Figure 8 Symmetrical design
  • Sensitivity: -48.2 db (3.9 mV/Pa)
  • Frequency response: 30 - 18,000 Hz (+/- 3dB)
  • Output Impedance: <=200 Ohms
  • Recommended load impedance: >1000 Ohms
  • Max.SPL (1% THD @1000 Hz): 145 dB
  • Connector: 3-Pin male XLR
  • Size: Diameter: 3" (O.D. grill), overall length 6 1/2", 2 1/2" (O.D. body)

Includes:

  • Gomez Ribbon Microphone
  • Aluminum case
  • Premium suspension shockmount
  • Drawcord cloth storage pouch
  • Micro-fiber cleaning cloth
  • Specifications and typical measurement report

SPECIAL SALE PRICE: $429.00
