Cascade Microphones is proud to announce our partnership with SAMAR AUDIO and Microphone-Parts.Com to develop and design the new GOMEZ FHX ribbon microphone. The GOMEZ FHX features the SAMAR FHX Ribbon Motor and the RT32 Toroidal Transformer which are both manufactured in the USA. With these added high-end components, the GOMEZ FHX sets a new standard for ribbon microphones at this price point. The SAMAR FHX short ribbon motor incorporates many of the legendary CASCADE ribbon features, which include: Symmetrical ribbon design, fast ribbon response, and natural ribbon compression. What really sets the FHX ribbon apart is a slightly extended high frequency response that results in a ribbon microphone that adds both warmth and clarity to your recordings. So if your in the market for a ribbon microphone that is capable of world class results, and can be confidently used on virtually any source, the GOMEZ FHX is an outstanding choice.

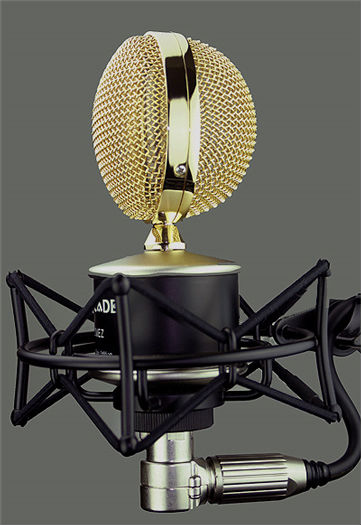

GOMEZ FHX Short Ribbon Microphone
Featuring USA Made SAMAR RT32 Toroidal Transformer and FHX Ribbon Motor
GOMEZ FHX is Hand Assembled in Olympia WA.
TRUE TONE
CASCADE GOMEZ FHX Ribbon Microphone...$699
- Samar FHX Ribbon Motor
- Samar RT32 Toroidal Transformer
Exposed View
Features:
- SAMAR FHX Ribbon Motor
- SAMAR RT32 Toroidal Transformer
- Single Layer grill for Improved Frequency Response
- Switchcraft 3-Pin XLR Connect
- Padded Aluminum Flight Case
- Completely Assembled In The USA
Specifications
More Information

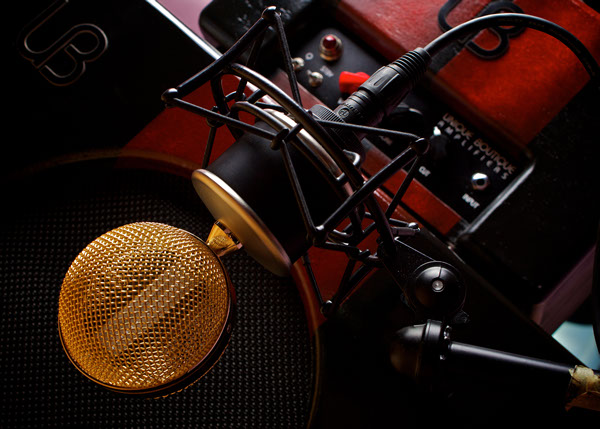

Alternate Images
Accessories
Specifications:
- Type: (velocity) short ribbon microphone
- Polar pattern: Figure 8 Symmetrical design
- Sensitivity: -48.2 db (3.9 mV/Pa)
- Output Impedance: <=200 Ohms
- Recommended load impedance: >1000 Ohms
- Max.SPL (1% THD @1000 Hz): 135 dB
- Switchcraft Connector: 3-Pin male XLR
FItted with:
- Samar RT32 Toroidal Transformer
- Samar FHX Ribbon Motor
FHX Ribbon Motor Specifications:
- Magnet Length...........50mm
- Ribbon Length............54mm
- Audio Path Length ~15mm
Includes:
- Gomez FHX Ribbon Microphone
- Samar RT32 Toroidal Transformer
- Samar FHX Ribbon Motor
- Switchcraft XLR connector
- Aluminum case
- Suspension shockmount
- Drawcord cloth storage pouch
- Micro-fiber cleaning cloth
Suggested Uses:
- Acoustic & Electric Guitars
- Vocals
- Horns
- Strings
- Banjo, Mandolin, Dobro
<
>
x
Cascade Mogami NEGLEX 2534 Quad Microphone Cable w/Neutrik Gold Contact XLR Connectors.
Cloud Microphones Cloudlifter- Add up to +25db of ultra-clean gain
NOTE: The SAMAR FHX Ribbon Motor and RT32 Toroidal Transformer are designed and manufactured in the USA by Samar Audio. Also if you would like to purchase the SAMAR FHX Ribbon Motor and RT32 Toroidal Transformer separately for retrofit into your GOMEZ or FAT HEAD/ FAT HEAD II, the packages are available and in-stock from MICROPHONE-PARTS.COM. Cascade Microphones is staffed with professional technicians that can retrofit your existing GOMEZ or FAT HEAD/FAT HEAD II with the SAMAR FHX MOD. Package . Please EMAIL us for more information.
