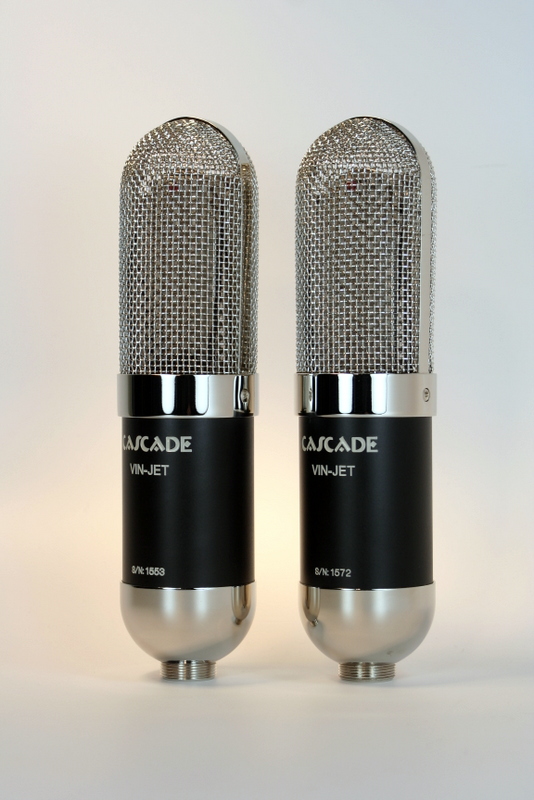

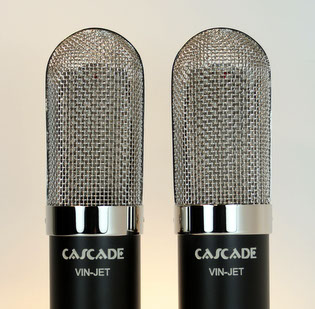

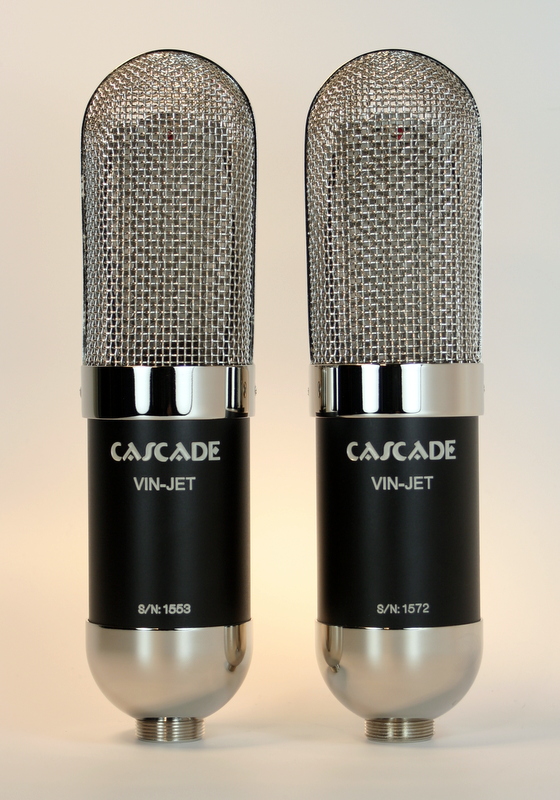

VIN-JET Stereo Pair - Includes Cascade Stereo Bar
Legendary Leon Russell recording in Nashville using a VIN-JET microphone on vocals.
Stereo Bar
x
Color Option: Black Body/Polished Nickel Grill Only
Tap/Click to Enlarge

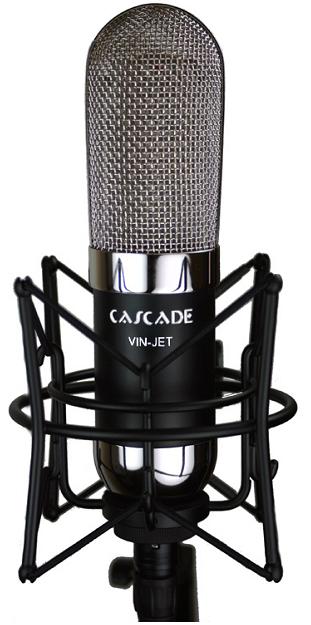

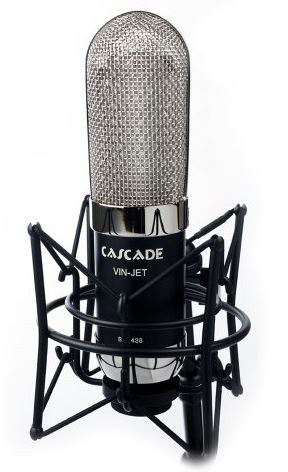

The Cascade VIN-JET ribbon microphone features a 2 7/16” long ribbon of aluminum suspended in the field of a pair of Neodymium rare earth permanent magnets. When the ribbon is exposed to sound it vibrates within the magnetic field and a tiny current is induced in the ribbon.
This current is amplified to produce sound. What makes ribbon microphones so incredibly sensitive and accurate is that the signal comes directly from the material that senses the sound; nothing is lost in translation. The result is the most intimate, warm, and articulate sound produced by any type of microphone. Ribbon microphones are an excellent choice for recording guitar cabinets, drum overheads and vocals.
Neodymium rare earth permanent magnet is a new kind of magnetic material developed in the 1980s with excellent magnetic characteristics in terms of a high-energy product, high coercive force etc. It is the strongest and most powerful magnetic material up to now and regarded as "The King of Magnets".
Audio samples recorded at Avast Studio in Seattle. Guitar samples provided by Mike (Smitty) Smith.
Samples were recorded using Neve Portico 5012 preamp. We used two (new, out of the box) Reissue Fender Deluxe Reverb amps with consecutive serial numbers. In addition we also used a Radial Big Shot switcher to divide the guitar signal equally into the two amps. The samples were recorded direct to hard disk with no EQ or compression.
Tap/Click to Enlarge
WIRED WITH
WIRE
LL2913 transformer
upgrade installed in our shop
Available with Lundahl Transformer
EXPOSED VIEW
Tap/Click to Enlarge
Tap/Click to Enlarge
Lundahl LL-2913 Transformer
Specifications
More Information
Alternate Images
Accessories
Specifications:
- Type: Ribbon (velocity) Microphone
- Ribbon type & Dimensions: 99% Pure aluminum, 2.5 micron, 2 7/16" (L) X 3/16" (W)
- Polar pattern: Figure 8 Symmetrical design
- Sensitivity: -54.8 dB (1.8 mV/Pa)
- Smooth, natural extended low and high ends
- Fast, accurate transient response
- Wide, extended sweet spots
- 135dB SPL capability
- Connector: 3-Pin male XLR
- Ideal for stereo microphone setups
- Size: 2 1/8" (O.D. grill), 2" (O.D. body)Overall length 8 3/8"
VIN-JET PAIR Includes:
- (2) VIN- JET Ribbon Microphones
- Aluminum flight case
- Stereo Blumlein Bar
- (2) Premium shockmount
- (2) Drawcord cloth storage pouch
- (2) Micro-fiber cleaning cloth
Suggested Uses:
- Vocal
- Electric & Acoustic Guitars
- Drum Overheads
- Horns
- Strings
- Banjo, Mandolin, Dobro
Available with Lundahl Transformer
Lundahl LL-2913 Transformer
<
>
