Mogami NEGLEX 2534 w/ Neutrik Gold Connectors



















          Special update: All Cascade Ribbon Microphones are Phantom Power safe.

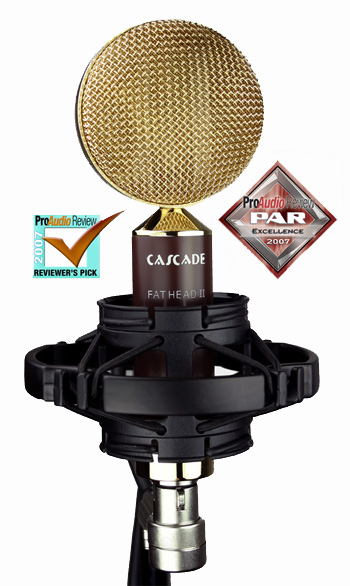

Cascade FAT HEAD II Ribbon Microphone



International Customers Click Here





New brown body w/gold grill and nut



Preview FAT HEAD II with Lundahl Transformer





My name is Jeremy Coverdale, I run a studio in Redding, Ca. I also play in Wesley Jensen and the Wildcats. We have been using your Fat Head mic a lot for various different tracking needs and I really love what you have done.. The Fat Head I am using is on loan to me from a fellow engineer friend. I gotta say, I have been using this mic with many other mics 10x the price and it really holds up. The Fat Head I am using is not even the upgraded one. I am amazed by the warmth and clarity.
Also, We just made a little promo video of a live recording of one of our new songs and recorded all the audio with the Fat Head placed in the middle with us standing around the mic.. I ran the mic into a Universal Audio LA610 (really makes this mic come alive). This is a live one take video and I am more than happy with how well the audio came through.. It took a little figuring out the best distance from the mic for each of us but i think we really got a good mix... there was very little eq done and NO overdubs.



New FAT HEAD II Stereo Pair Package - Includes/ Blumlein - Stereo Adaptor Bar

Shown with Silver body


Shown with black body


 Stereo Adaptor Bar shown in Blumlein configuration

The basics of Blumlein recording


Legendary symmetrical ribbon design is incorporated into the FAT HEAD II

Unlike most ribbon motors designed today with an offset ribbon element the new Cascade FAT HEAD II houses a hand-tuned ribbon element that incorporates the legendary symmetrical ribbon design. This design offers a true figure 8 pattern. The corrugated aluminum membrane itself is positioned in the center from front to back, thus producing a balanced audio input signal to both sides of the ribbon assembly. This design is very useful when executing a mid-side or Blumlein recording set-up and also great for live stage use.

The FAT HEAD II offers a unique Radian Grill Design

The Cascade FAT HEAD offers the natural and open sound associated with the finest ribbon microphones. You will find that when recording acoustic guitars, guitar cabinets, vocals, drum over-heads, and countless other types of instruments, the ribbon microphone will produce the warmth that is vital to today's digital recording environment. We firmly believe you will also agree that this microphone will make a great addition to your collection.

We inspect the audio and built quality of each and every Cascade microphone before it leaves our shop, once you try one...you'll be a believer.

FAT HEAD II vs. FAT HEAD: FAT HEAD II offers a Polished nickel grill, neck and nut with a larger body, plus a heavy-duty premium shockmount.  Sonically the same as the standard FAT HEAD.

Specifications:

  • Type: Ribbon (velocity) Microphone
  • Ribbon type & Dimensions: 99% Pure aluminum, 2.5 micron, 1 3/4" (L) X 3/16" (W)
  • Polar pattern: Figure 8 Symmetrical
  • Sensitivity: -56 db +/- 2 dB (0 dB=1V/Pa)
  • Frequency response: 30 to -18,000 Hz (+/- 3dB)
  • Output Impedance: <=200 Ohms
  • Recommended load impedance: >1000 Ohms
  • Max.SPL (1% THD @1000 Hz): 165 dB
  • Connector: 3-Pin male XLR
  • Size: Diameter: 3” (O.D. grill), overall length 7 3/4"”, 1 3/4" (O.D. body)

Includes:

  • FAT HEAD Ribbon Microphone

  • Premium suspension shockmount

  • Blumlein - Stereo Adaptor Bar

  • Upgrade aluminum case

  • Micro-fiber cleaning cloth


Choose body color

Choose Color
FAT HEAD II Stereo Pair Package Includes/ Blumlein - Stereo adaptor Bar -$399.00 - Availability: Ready to ship




Choose body color

Body Color
FAT HEAD II Stereo Pair Package Includes/ Blumlein - Stereo adaptor Bar - w/ Lundahl Transformer's $699.00 - Availability: Ready to ship


  Metal Pop-filter - $25.95 (Recommended) Availability: Ready to ship


Cross Spectrum Labs

Detailed Frequency Response and Polar Pattern Measurements
