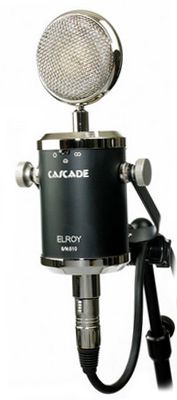

ELROY - LARGE DIAPHRAGM MULTI-PATTERN TUBE MICROPHONE



The ELROY tube condenser microphone features a unique shock-absorbing capsule design that eliminates the need for an external shockmount, thus the yoke adaptor.



Triode-wired  and  fitted with a specially selected 6J1 tube, the Elroy ensures low noise and the warmth you are looking for.



The included polar patterns are: cardioid, figure-eight and omni-directional which are available via a 3-position switch on the front side. Also included on the rear of the microphone is a dual position switch that controls the bass roll-off and pad functions.



This large diaphragm tube microphone is capable of recording a wide variety of instruments and a many types of vocal ranges. Take advantage of the new ELROY, “best value on the market today”.

OUT OF PRODUCTION AT THIS TIME

Tap/Click to Enlarge



Specifications

More Information

Alternate Images

Accessories

Specifications:



  •     1.25 inch gold sputtered multi-pattern hand dampened dual diaphragm capsule
  •     Unique Shock-absorbing Capsule design
  •     -10 db pad & lo-cut filter
  •     6J1 tube
  •     Polar Pattern: Three position switchable Omnidirectional, Figure 8, and Cardioid patterns
  •     Frequency Response: 20Hz - 20kHz
  •     Sensitivity: -37dBV (14.1mV) @ 1Pa
  •     Impedance: 250 Ohms
  •     Max SPL: 133dB, 1% THD, 1KHz
  •     Self Noise: 18dBA
  •     Power Requirements: 115VAC or 230VAC, switchable

Includes:



  • Elroy Tube Microphone
  • Aluminum case
  • Padded storage pouch
  • 7-Pin 20ft. XLR cable
  • Heavy duty power supply
  • Micro-fiber cleaning cloth

Typical Suggested Uses:



  • Acoustic & Electric Guitars
  • Vocals
  • Horns
  • Strings
  • Banjo, Mandolin, Dobro
  • Drums (overhead)
